Ramming Mass (Induction Furnace)
Monolithics




Basic Ramming Mass - Indspinel C

Basic Ramming Mass - Indspinel C

We Joglekar Refractories Private Limited are the leading manufacturer of Basic Ramming Mass, made from Dead Burnt Magnesite clinker in association with Chromite Sand. Basic Ramming Mass is used as a refractory material for lining of induction furnaces to withstand very high temperatures. Ramming Mass is manufactured with great precision using modern techniques and quality raw materials which is being imported. Corrosion resistant with a high level of thermal stability, it offers maximum output and last longer.

Our Signature Ramming Mass used in induction furnace for Basic Lining

Product Description
material made from Dead Burnt Magnesite clinker in association with Chrome. Specially bonded with clays and other chemical binders to achieve the desired sintering characteristics

Product Specification
MgO - 70% min, Cr2O3 - 8min, SiO2 - 8%max, CaO - 2% max
Sieve Distribution 0-4 and 0-5 mm


Send Enquiry


Ramming Mass - Indspinel TA

Ramming Mass - Indspinel TA

Ramming Mass named as Indspinel TA is made from Dead Burnt Magnesite clinker in association with Alumina. Ramming Mass is used as a refractory material for lining of induction furnaces to withstand very high temperatures. Ramming Mass is manufactured with great precision using modern techniques and quality raw materials which is being imported. Corrosion resistant with a high level of thermal stability, it offers maximum output and last longer.

Our Signature Ramming Mass used in induction furnace for Basic Lining

Product Description
An Induction furnace ramming material made from Dead Burnt Magnesite clinker in association with Alumina. Specially bonded with clays and other chemical binders to achieve the desired sintering characteristics.

Product Specification
MgO - 74% min, SiO2 - 6%max, Al2O3 - 14% min, CaO - 2%max

Sieve Distribution 0-4 and 0-5 mm

Send Enquiry



Neutral Ramming Mass - Indspinel N

Neutral Ramming Mass - Indspinel  N

Neutral Ramming Mass named as Indspinel N is made from High performance Alumina clinker in association with Dead Burnt Magnesite. Neutral Ramming Mass is used as a refractory material for lining of induction furnaces to withstand very high temperatures. Ramming Mass is manufactured with great precision using modern techniques and quality raw materials which is being imported. Corrosion resistant with a high level of thermal stability, it offers maximum output and last longer.

Our Signature Ramming Mass Product used in Induction Furnace for lining.

Product Description
An Induction furnace ramming material made from Dead Burnt Magnesite and Alumina. Specially bonded with clays and other chemical binders to achieve the desired sintering characteristics.

Product Specification
Al2O3 - 84% min, MgO- 13% min, SiO2 - 2% max, CaO - 0.5% Max
Sieve Distribution 0-3mm

Send Enquiry



Ramming Mass - Indspinel M

Ramming Mass - Indspinel M

Ramming Mass named as Indspinel M is made from Dead Burnt Magnesite only. Ramming Mass is used as a refractory material for lining of induction furnaces to withstand very high temperatures. Ramming Mass is manufactured with great precision using modern techniques and quality raw materials which is being imported. Corrosion resistant with a high level of thermal stability, it offers maximum output and last longer.

Our Signature Ramming Mass used in induction furnace for Basic Lining



Product Description
An Induction furnace ramming material made from Dead Burnt Magnesite clinker in association with Special Binders. It is bonded with clays and other chemical binders to achieve the desired sintering characteristics.

Product Specification
MgO - 86% Min.
Size - 0-4mm

Send Enquiry


IndPatch

IndPatch

Product Description
This material is designed for repairing the cracks and other erosion that occurs in the lining during usage. It possesses good workability and has no shrinkage upto 1650°C and has good erosion resisting properties. The chemical composition is similar to the ramming mass but the grading/ binder is different for good workability.

Product Specification
MgO - 68%, Cr2O3 - 8.8%, SiO2 - 10.5%, CaO -1.7%

Send Enquiry


IndPatch TA

IndPatch TA

Product Description
This material is designed for repairing the cracks and other erosion that occurs in the lining during usage. It possesses good workability and has no shrinkage upto 1650 ° C and has good erosion resisting properties. The chemical composition is similar to the ramming mass but the grading/ binder is different for good workability..

Product Specification
MgO - 80% min, CaO - 1%min, Al2O3 - 10%max, SiO2 - 2%max,
Size 0-1mm

Send Enquiry


IndPatch N

IndPatch N

Product Description
This material is designed for repairing the cracks and other erosion that occurs in the lining during usage. It possesses good workability and has no shrinkage upto 1650 °C and has good erosion resisting properties. The chemical composition is similar to the ramming mass but the grading/ binder is different for good workability

iProduct Specification
AL2O3 - 72% Min., MgO - 24% Min., SiO2 - 2% max

Send Enquiry



IndPatch M

IndPatch M

Product Description
This material is designed for repairing the cracks and other erosion that occurs in the lining during usage. It possesses good workability and has no shrinkage upto 1650 °C and has good erosion resisting properties. The chemical composition is similar to the ramming mass but the grading/ binder is different for good workability.

Product Specification
MgO - 87 - 90%, SiO2 - 7-9%, Sieve distribution 0-1 mm

Send Enquiry

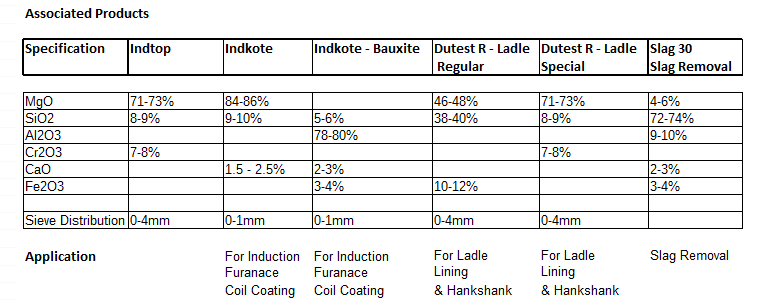

Associated products - Ramming Mass (Induction Furnace)

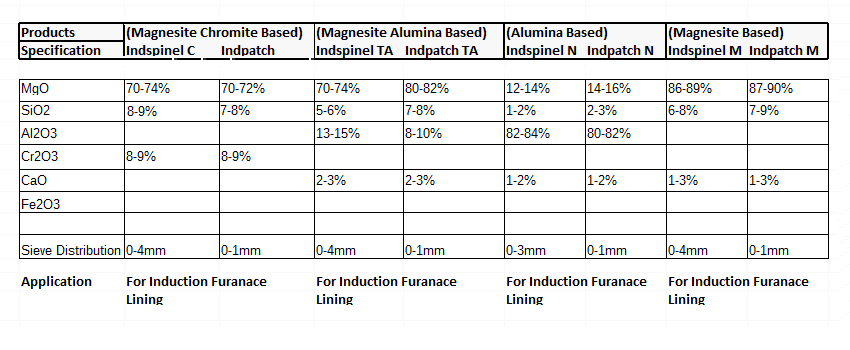

monolithics table


Ind Top

Ind Top

It is used for making top on the induction furnace.

Product Description
MgO based formulation to be used with 8 to 10 % foundry grade Sodium Silicate for making the area of furnace outside the coil and mouth of furnace. Product has good resistance to wear due to mechanical abrasion.

Product Specification
MgO - 70%, Cr2O3 - 8%, SiO2 - 8%

Send Enquiry


Ind Kote

Ind Kote

Used for Coating of the coil

Product Description
This is a High MgO based refractory powder blended with suitable binders to protect the Induction furnace coils

Product Specification
MgO 84%, SiO2 9.5%, CaO 1.8%

Send Enquiry





Dutest R

Dutest R

Can be used as a lining material for Ladles/ Hand shank (20 kg up to 1000 Kg. Capacity).

Product Description
This is Dunite based ramming mass with high refractoriness. It is having high Specific Gravity and is resistant to slag. Ladles/hand shank lined with Dutest-R gives much more life than ordinary materials thussaving man-hours and improves the performance of the same.

Product Specification
MgO - 48% min; SiO2 - 40% max; Fe2O3 -10% max; Grading 0 - 4 mm
Service Temp. :
1700 °C, Sintering Temp: 800 °C

Send Enquiry



Slagwell

Slagwell

It helps to remove slag from iron and steel during the melting process.

Product Description
JRPL Slag Well (slag 30) is the best product to remove slag from iron and steel when it melts in the Induction Furnace or Electric Arc Furnace.

Product Specification
SiO2 -74%, Al2O3 -10%, MgO - 5%, CaO - 2%, Fe2O3 - 4%

Send Enquiry


JRPL Mag Chrome Mortar

JRPL Mag Chrome Mortar

It is used for laying and repairing masonry construction of electric furnace.

Product Description
It is used for laying and repairing magnesite brick, magnesite chrome brick, magnesite alumina brick masonry construction of electric furnace.

Product Specification
MgO 60% min, SiO2 6%max, CaO 2%max, Cr2O3 13%

Send Enquiry



JRPL ARC Ram

JRPL ARC Ram

Product Description
ARC Ram is a pure magnesite based material and it is been used in Electric ARC furnace for lining purpose.

Product Specification
Mgo 82-85%, SiO2 7-9%, CaO 1-3% Sieve distribution 0-4 mm
